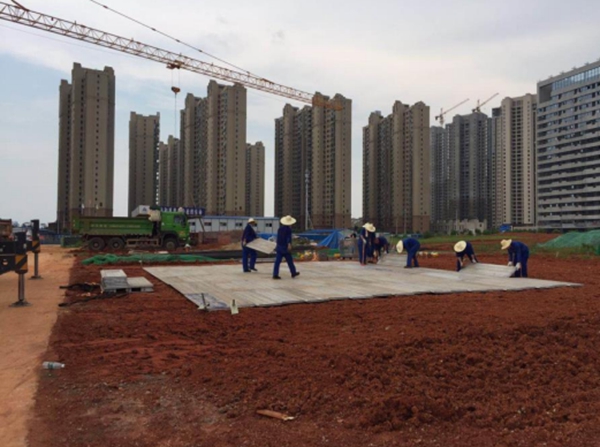

The Alloy metal sheet AMS-100 is a kind of portable support equipment, which can be transported to a predetermined by Road, railway, waterway or aviation. It can be quickly assembled into temporary platforms of different sizes by manual Work according to the needs, for guaranteeing its use in harsh ground environment.

Total weight of complete set of equipment: 3.4 tons;

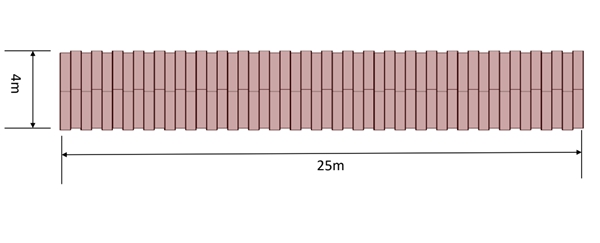

Laying area: 4m(width)x25m (length) (100 sq. m.)

; Maximum load capacity

Number of operators: 8;

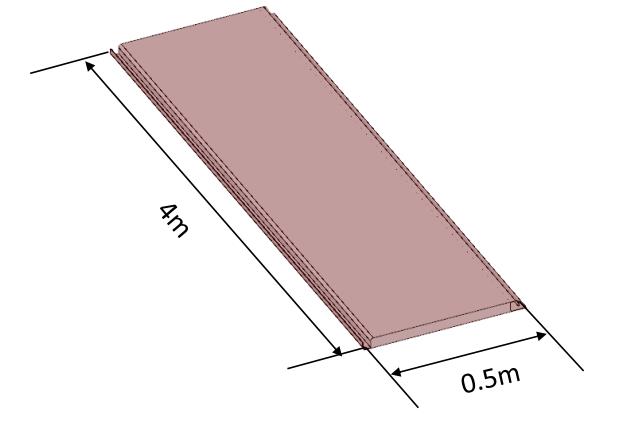

Size of unit boards: 0.5m (length) × 4.0m

(width); Thickness: 39mm.

Number of unit boards: 50;

Weight of unit boards: 54kg.

Loading: 45T

Country of Origin: China

Country of Manufacturer: China

Country of Assembly: China
